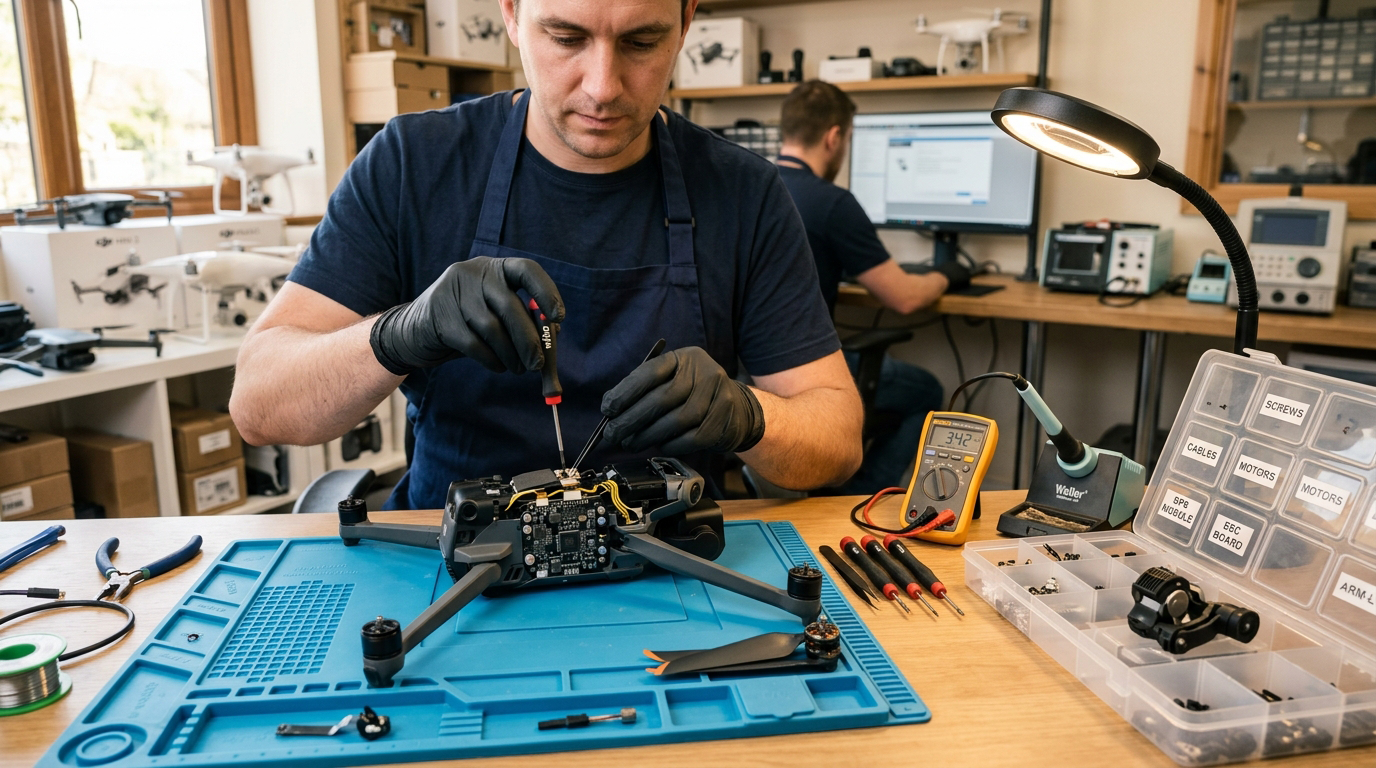

A drone repair workbench does not need to look like a professional laboratory.
What matters is whether you can quickly find the right screwdriver, see a tiny connector clearly, keep screws from getting mixed up, and test a replacement component without taking the drone apart more than once.
That becomes especially important when working with DJI drones.
A single repair job may involve a gimbal motor, ribbon cable, GPS module, ESC, arm assembly, motor or shell. These parts are small, model-specific, and easy to confuse when the workspace is not organized properly.
For repair shops, technicians and experienced drone users, a practical workbench should make one thing easier:
Diagnose the problem, replace the correct part, and finish the job with fewer unnecessary steps.
This guide explains how to build that kind of workstation.
A common mistake is buying more tools before deciding how the workbench will actually be used.
Start with the table.
You need a surface that is:
A useful layout is to keep the drone in the center and place tools and parts around it.
For example:
Left: screwdrivers and hand tools
Center: current repair
Right: replacement parts and test components
Back: storage boxes and documentation
This sounds simple, but a fixed layout saves time.
After several repairs, you will automatically reach for the same tool in the same place.
Small drone components are difficult to inspect under normal room lighting.
A connector may look fine from a distance but have a bent contact.
A ribbon cable may have a small crack that is difficult to see.
A solder joint may appear connected until you look closely.
A bright adjustable LED work light should therefore be one of the first things installed on a drone repair bench.
For more detailed work, a magnifying lamp or inspection loupe can be useful.
This is particularly helpful when troubleshooting gimbal problems, because not every gimbal issue is caused by the motor itself.
Before replacing a gimbal motor, inspect the motor, cable, connector and surrounding mechanical structure together.
That simple habit can save a lot of unnecessary part replacement.
You do not need a wall covered with tools to repair drones efficiently.
A small selection of good-quality tools is usually more useful.
This is the most obvious tool, but it is also one of the easiest places to make mistakes.
Use the correct driver size rather than forcing a bit that is too small or too large.
A magnetic precision screwdriver is especially convenient when working with small screws.
Tweezers are useful for handling:
A good pair should give you enough control without putting unnecessary pressure on delicate parts.
Plastic opening tools are useful when working with shells, covers and clips.
They are especially helpful when you want to reduce scratches during disassembly.
These are useful for wire handling, small clips and components that are difficult to remove by hand.
Not every repair requires soldering, but some wiring and board-related jobs do.
A temperature-controlled soldering iron is a practical addition to a professional drone repair workstation.
Once you start opening drones, you are no longer handling only plastic parts.
You may also be working with:
An anti-static wrist strap and suitable ESD work surface are useful precautions when handling exposed electronic components.
A professional workbench should make safe handling easy rather than relying on memory every time.
This is one of the smallest changes that can make one of the biggest differences.
Do not put every removed screw into one tray.
Different assemblies can use different screw sizes, and two screws that look almost identical may not belong in the same location.
Use magnetic mats, compartment boxes or small labeled containers.
A simple naming system works well:
DJI Mini 3 → Arm → Screws
DJI Mini 3 → Gimbal → Screws
DJI Mavic 3 → Shell → Screws
When multiple repairs are being handled at the same time, this becomes even more important.
A few extra seconds spent labeling parts can save a much longer search later.
A repair bench is for working.
A storage system is for inventory.
Keeping those two areas separate makes the workspace easier to manage.

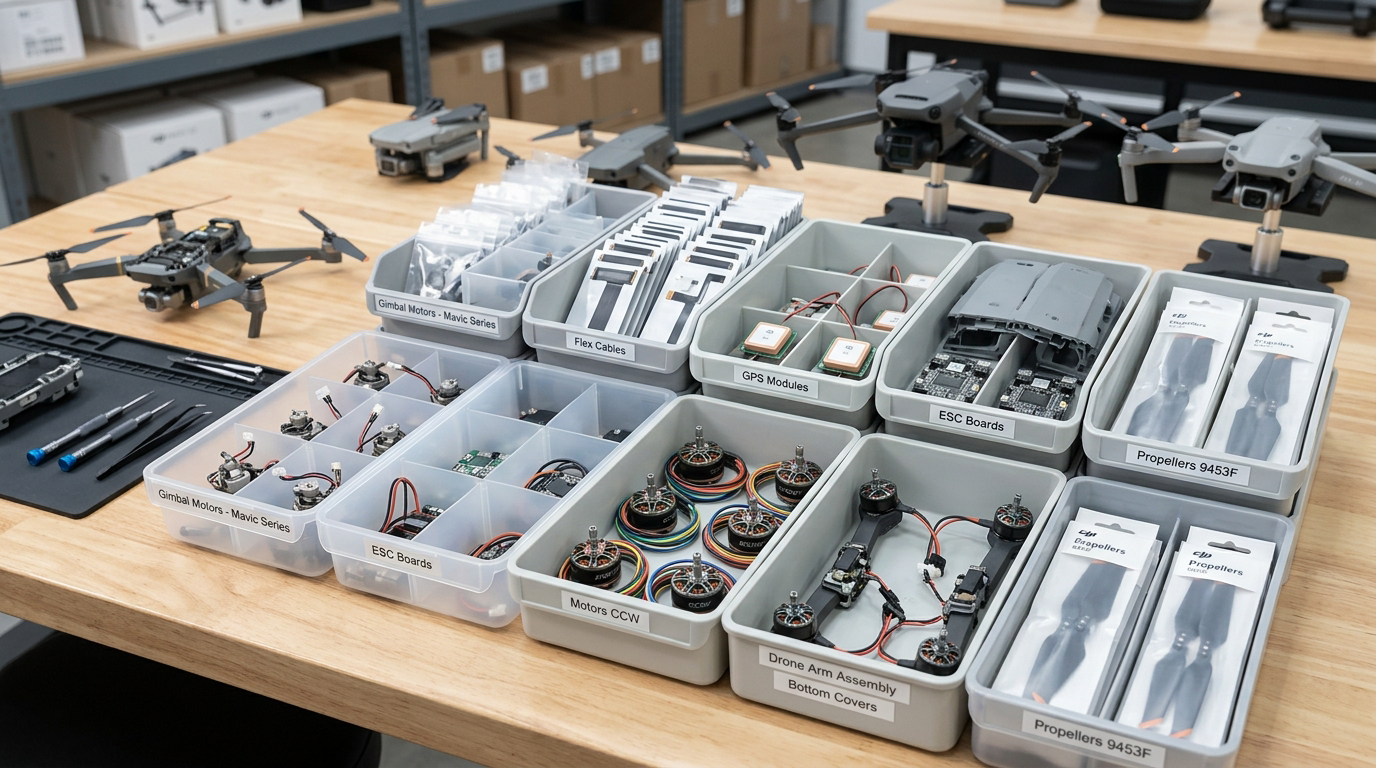

For DJI replacement parts, one practical approach is:
Drone Series → Part Type
For example:
Gimbal Parts / GPS / Motors / Cables / Shells
Gimbal Parts / GPS / Arm Parts / Cables / Motors
Gimbal / Shell / Motor / Cable / Other Components
ESC / Motors / Shell Components / Other Repair Parts
Gimbal / Motors / GPS / Main Boards / Cables / Other Components
This approach becomes much easier when each storage box has a visible label.
DJIDrone-Parts already organizes its product offering around DJI replacement and repair components, including gimbal motors, gimbal cameras, GPS modules, ESC boards, arm assemblies, propellers and other parts.
A workbench should not only help you disassemble a drone.
It should also help you figure out what actually failed.
This is particularly important for gimbal-related problems.
For example, a gimbal that shakes or fails to initialize may require more than simply replacing the motor.
The motor, cable, connector and mechanical assembly all deserve inspection.
This is where a dedicated diagnostic tool can become useful.

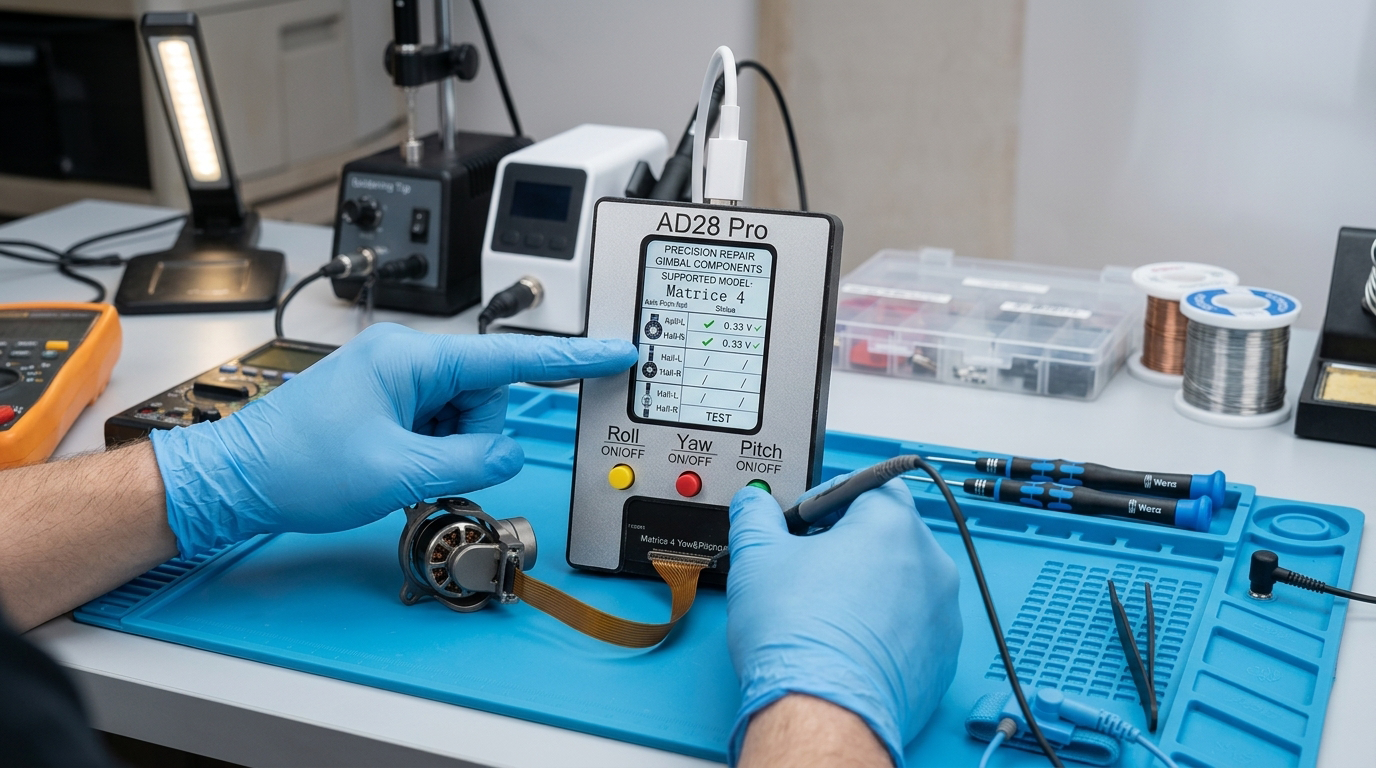

DJIDrone-Parts offers a Gimbal Motor Test Board for DJI Matrice 4 Series, designed for testing compatible Yaw, Pitch and Roll gimbal motors.
The advantage of a dedicated tester is straightforward:
You can test the suspected motor before committing to a replacement.
That makes diagnosis more controlled and can reduce unnecessary parts replacement.
For more information, see:
How to Use a DJI Gimbal Motor Test Board: A Step-by-Step Guide for Drone Repair
You can link that sentence directly to the existing article on your site.
A multimeter is not a drone-specific tool, but it earns its place on a professional repair bench.
It can be useful when checking electrical continuity, basic connections and other electrical conditions during troubleshooting.
It does not replace model-specific testing tools, but it gives technicians another way to verify what they are seeing.
For repair shops, having the multimeter permanently available is much more practical than looking for one every time an electrical question comes up.
Once you know which models you handle most often, your inventory should follow your actual repair demand.
For example, a shop working frequently on gimbal-related repairs may want easy access to:
A shop handling crash damage may need more:
Electrical repair work may require:
The idea is not to stock everything.
It is to make the parts you actually use easy to find.
DJI has many models that look similar from the outside.
That does not mean their internal components are interchangeable.
When ordering replacement parts, check the complete combination of:
Drone model + part type + version + connector + compatibility
Do not rely only on a product photo.
For example, a GPS module designed for one DJI Mini model should not automatically be assumed to fit another model simply because the housing looks similar.
The same principle applies to gimbal motors, ribbon cables, ESC boards and arm assemblies.
For your website, this is also one of the strongest reasons to make product compatibility information easy to find.
Customers are far more comfortable placing an order when they can quickly confirm that the part matches their drone.
This is a habit worth developing.
Before removing a component, take a few photos.
Focus on:
You may think you will remember everything.
After several repairs, you probably will not.
A phone camera is enough.
For repair shops, keeping these photos with the work order can also make reassembly easier for another technician.
One useful troubleshooting practice is keeping a small number of confirmed working components.
For example, when investigating a gimbal problem, a known-good compatible motor may help determine whether the original motor is actually causing the issue.
A similar approach can sometimes be useful for cables and other components.
This is not a replacement for proper testing.
It is simply another way to reduce guesswork.

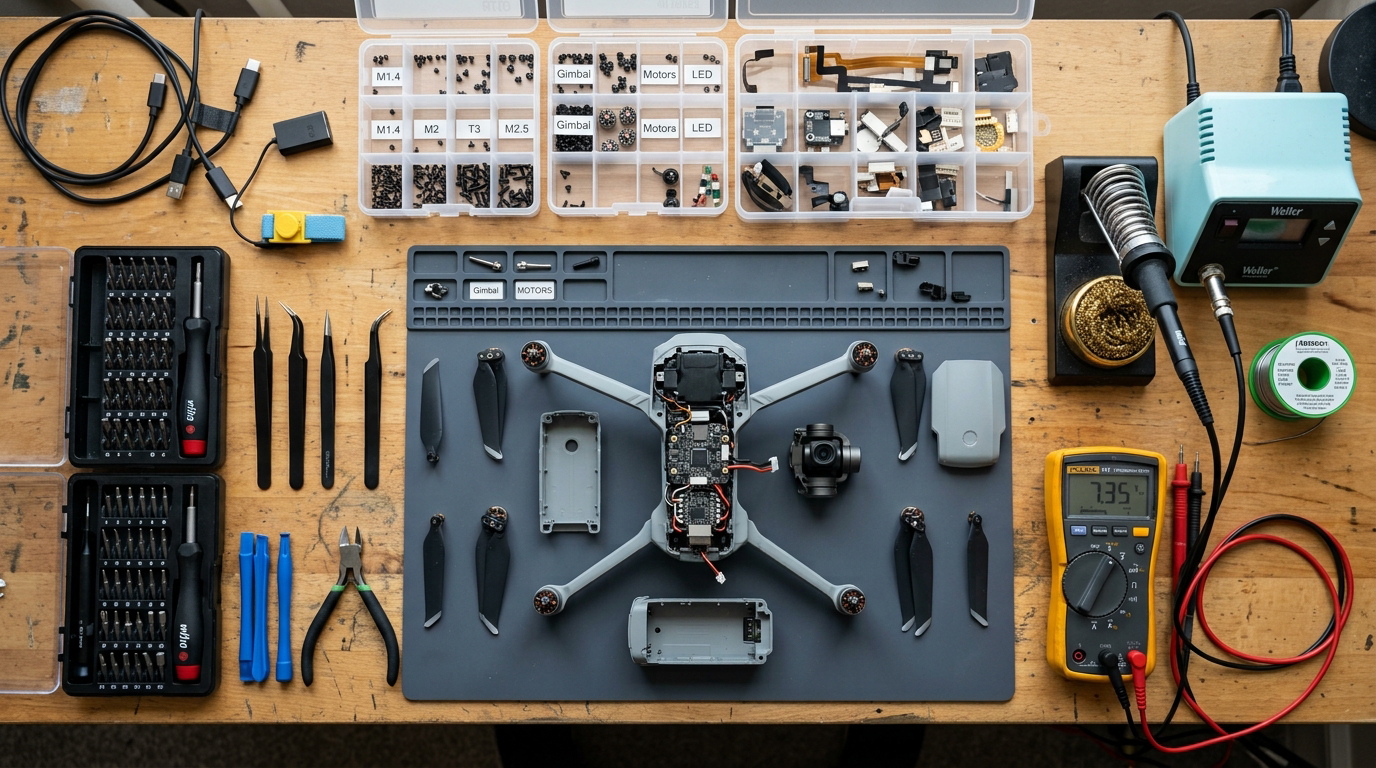

A good workbench can be divided into five simple zones.
Precision screwdrivers, tweezers, pry tools and screw organizers.
LED lighting, magnifier and cleaning tools.
ESD equipment, soldering tools and multimeter.
Gimbal test boards and other diagnostic equipment.
Labeled trays for compatible DJI components.
The advantage is not how professional the bench looks.
The advantage is that you know where everything belongs.
This is something that happens easily in busy repair environments.
A technician finishes one repair, leaves the removed components on the bench, starts another job, and suddenly half the workspace is covered with parts from different drones.
Try to reset the bench after each job.
Remove:
Return tools to their normal locations.
Update the parts inventory.
Then start the next repair.
It takes less time than searching through a pile of mixed components later.
| Category | Recommended Equipment |
|---|---|
| Basic tools | Precision screwdrivers, tweezers, pry tools |
| Inspection | LED work light, magnifier |
| Electronics | ESD wrist strap, soldering iron, multimeter |
| Screw management | Magnetic mat, trays, labels |
| Testing | Gimbal motor test board, test cables |
| Cleaning | Soft brushes, suitable cleaning tools |
| Storage | Labeled DJI parts boxes |
| Documentation | Phone or camera, repair notes |
| Spare parts | Motors, cables, GPS, ESC, gimbal parts, arms |
You do not need to buy every item at once.
Start with the tools that match the repairs you perform most frequently.
A useful parts inventory is not simply a collection of products.
It should reflect the problems you actually see.
For example:
Gimbal shaking
Check the gimbal motor, ribbon cable, connector and mechanical structure.
GPS-related issue
Check the relevant GPS module and connections.
Motor or power problem
Inspect the motor and ESC-related components.
Crash damage
Inspect the arm, shell, motor and associated cables.
This problem-based approach is often easier to manage than trying to memorize dozens of individual part names.
It is also a useful way to organize product categories on an online store.
The biggest improvement in a repair shop is not always a new piece of equipment.
Sometimes it is simply knowing where everything is.
A technician loses time when:
A clean workflow reduces those small delays.
Over dozens of repairs, those small delays add up.
There is no need to purchase every possible replacement part.
Start with the DJI models you work with most frequently.
Then track which components are actually being requested.
Over time, your inventory may naturally develop into categories such as:
and within each category:
Gimbal → Cable → GPS → Motor → ESC → Arm → Shell
This gives you a much clearer purchasing strategy.
It also makes it easier for customers to find the correct part when they visit your website.
When you are ready to replace a damaged component, do not focus only on price.
Check the details that actually matter:
Does the part match the exact model?
Is the connector correct?
Is the version correct?
Is the component intended for replacement use?
Does the product description clearly state compatibility?
At DJIDrone-Parts, the product range is focused on DJI replacement and repair components rather than general-purpose drone accessories.
That includes categories such as gimbal motors, gimbal cameras, signal cables, GPS modules, ESC boards, arm assemblies, propellers and other DJI repair parts.
When contacting us about a part, providing the drone model, part name, part number or a clear product photo makes compatibility checking much easier.
A professional drone repair workbench does not have to be expensive.
It needs to be practical.
Good lighting helps you see the problem.
The right tools help you work without damaging small components.
Good screw organization makes reassembly easier.
A dedicated testing area helps you diagnose before replacing parts.
And a properly organized DJI parts inventory keeps the whole process moving.
The best setup is the one that makes your next repair easier than your last one.
Inspect before replacing.
Test before guessing.
Keep parts organized.
Check model compatibility before ordering.
That is what turns a basic table into a real drone repair workstation.
