A DJI drone gimbal is one of the most sensitive mechanical and electronic systems on the aircraft. When a gimbal motor becomes weak, stuck, damaged, or fails to respond correctly, the drone may show symptoms such as gimbal shaking, abnormal initialization, tilted camera angles, or a “Gimbal Motor Overloaded” warning.
DJI officially notes that a gimbal motor overload warning can be caused by physical obstruction, accessories, excessive movement, or a hardware problem inside the gimbal system. When basic troubleshooting does not solve the issue, the gimbal hardware may require further diagnosis.
For drone repair technicians, replacing a gimbal motor without testing it first can lead to unnecessary costs and wasted repair time. A DJI gimbal motor test board provides a practical way to test individual gimbal motors and determine whether the motor is likely functioning normally before installing it back into a complete gimbal assembly.
In this guide, we will explain how to use a DJI gimbal motor test board, what you should check before testing, how to test Yaw, Pitch, and Roll motors, how to interpret the test results, and when a motor should be replaced.
A DJI gimbal motor test board is a specialized diagnostic tool used to check the operating condition of gimbal motors separately from the complete drone.
A typical DJI camera gimbal uses multiple motor axes, including:
Each motor has a specific role in stabilizing and positioning the camera. If one motor is damaged, the entire gimbal may fail to initialize or maintain stable movement.
A dedicated test board allows technicians to isolate the motor and check whether it responds correctly to the test signal.
For example, the Gimbal Motor Test Board for DJI Matrice 4 Series on DJIDrone-Parts is designed for testing Matrice 4 series gimbal motor systems and supports diagnostic testing of Yaw, Pitch, and Roll motors. The product is designed as a plug-and-play repair tool for technicians and maintenance professionals.
Blindly replacing a motor may solve the problem, but it does not tell you what actually caused the failure.
A test board can help you:
Identify a potentially defective motor before installation
Reduce unnecessary replacement costs
Separate motor problems from other gimbal problems
Improve troubleshooting efficiency
Test replacement motors before completing the repair
Reduce the need to fully assemble the drone during diagnosis
This can be particularly useful for repair shops handling multiple DJI drones or replacement parts every day.
Before using a test board, first determine whether the symptoms actually point toward a possible gimbal motor problem.
Common symptoms include:
If DJI Fly or another compatible DJI application reports a gimbal motor overload warning, inspect the gimbal for physical obstruction first.
DJI recommends checking for the gimbal protector, gimbal buckle, protective film, foreign objects, or third-party accessories that may interfere with gimbal movement. If those causes are eliminated and the problem remains, a hardware issue may be involved.
A damaged motor may cause:
Unstable movement
Jerky movement
Slow response
One axis failing to move
Abnormal movement during initialization
Continuous vibration
Gimbal movement in the wrong direction
DJI also identifies hardware problems as a possible cause when an aircraft gimbal behaves abnormally.
If the gimbal starts moving when the drone powers on but stops before completing initialization, one possible cause is a problem with a motor, cable, connector, or another component in the gimbal system.
In this situation, testing the individual motor can help narrow down the problem.
Before connecting a DJI gimbal motor to a test board, prepare the following:
1. DJI gimbal motor
Make sure the motor is the correct type for the drone and gimbal assembly you are testing.
2. Compatible gimbal motor test board
Different DJI drone generations may use different gimbal motor systems and connectors. Always confirm compatibility before connecting a motor.
For example, the DJIDrone-Parts Matrice 4 Series test board is specifically designed for DJI Matrice 4 series gimbal motor systems.
3. Correct signal cable or connector
The motor must be connected using the correct cable and connector arrangement for the test board.
4. Stable work surface
Perform the test on a clean, dry and stable workbench.
5. Basic repair tools
Tweezers, precision screwdrivers, anti-static equipment, and suitable lighting can make inspection easier.
Important: Always follow the markings and connection instructions of your specific test board. Connector layouts and testing procedures can differ between DJI models and test-board versions.
Before powering the test board, identify which motor you are testing.

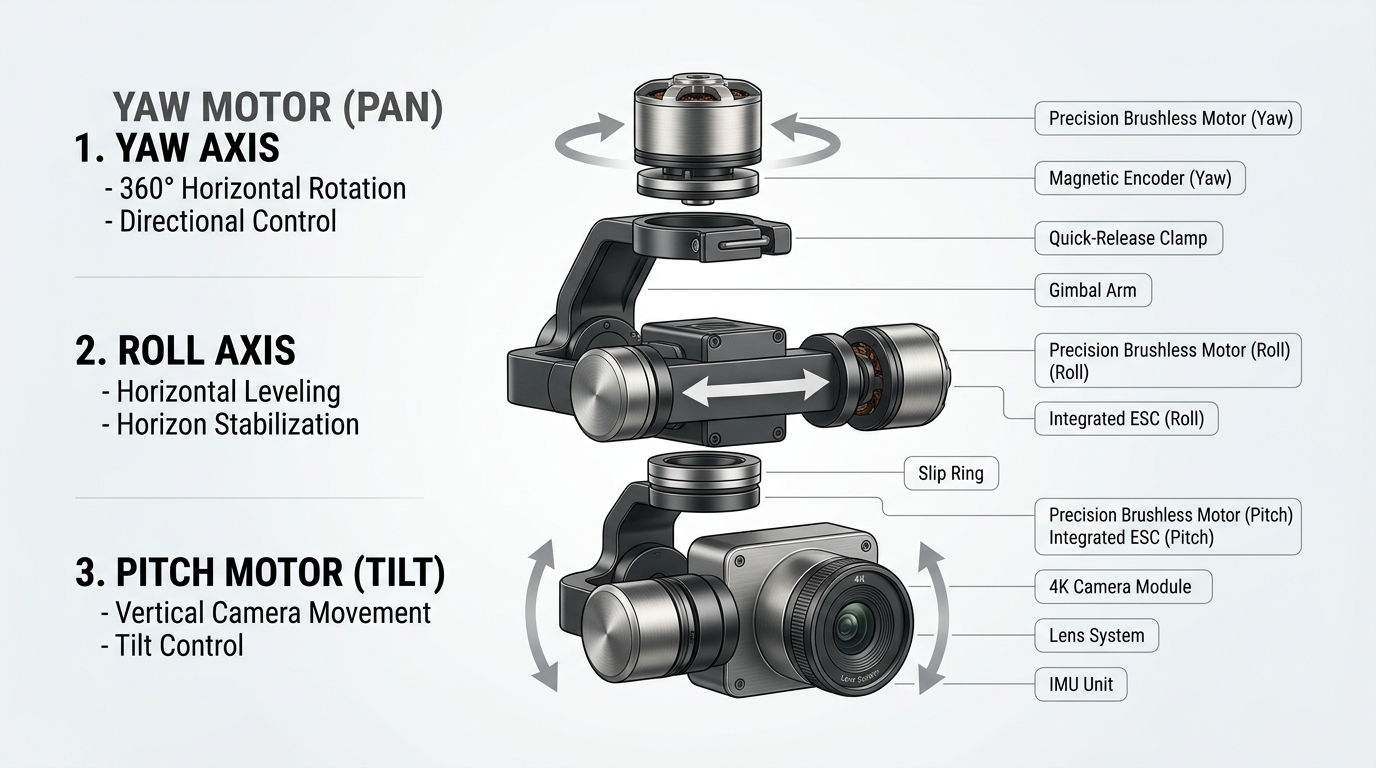

A typical three-axis DJI gimbal contains:
The Yaw motor controls horizontal rotation of the camera assembly.
The Pitch motor controls the camera's up-and-down movement.
The Roll motor controls the camera's horizontal leveling.
Correct identification is important because the motor must be connected to the corresponding test interface or testing function.
Do not immediately power on the test board.
First perform a visual inspection.
Check for:
Cracked motor housing
Bent components
Damaged wires
Torn or damaged flexible cables
Broken connectors
Visible corrosion
Physical deformation
Foreign material around the motor
Signs of impact or water damage
Also check whether the motor shaft or gimbal axis appears mechanically obstructed.
A damaged cable can sometimes create symptoms similar to a motor failure. Therefore, replacing the motor before checking the cable can lead to an incorrect diagnosis.
For DJI gimbal repair, the motor, signal cable and mechanical structure should be considered together rather than treating the motor as the only possible failure point.

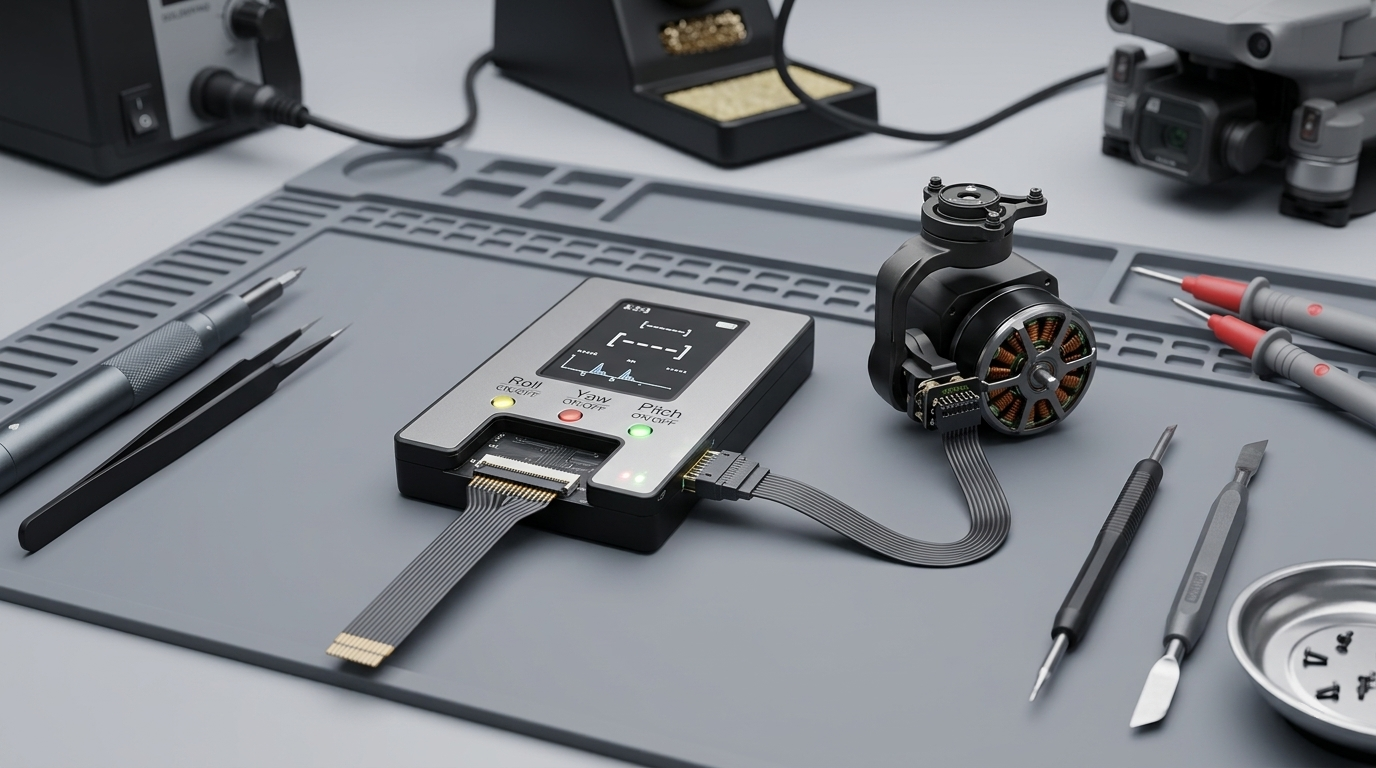

After confirming that the motor and connector appear normal, connect the motor to the compatible test board.
Make sure:
The power supply is disconnected before making the connection.
The connector orientation is correct.
The connector is fully seated.
No pins are bent or misaligned.
The motor cable is not under excessive tension.
Never force a connector into the socket.
For professional repair environments, it is also good practice to keep the workbench organized and prevent metal tools from touching exposed electronic contacts.
Once the motor is correctly connected, power the test board according to the manufacturer's instructions.
A professional motor test board is designed to provide the electrical and control signals needed to evaluate the connected motor.
The goal is not simply to determine whether the motor receives power. The more useful question is whether the motor responds correctly to the test signal.
This is one of the major advantages of using a dedicated gimbal motor test tool instead of relying only on visual inspection.
The exact controls vary by test-board model, but the general process is straightforward.
Select or activate the corresponding axis:
Yaw → Test
Roll → Test
Pitch → Test
Observe the motor carefully during the test.
Pay attention to:
Whether the motor starts correctly
Whether movement is smooth
Whether the response is immediate
Whether abnormal vibration occurs
Whether the motor stops unexpectedly
Whether the test board reports a normal or abnormal result
For professional diagnostic tools, the test result may be displayed directly through indicators or the board's interface.

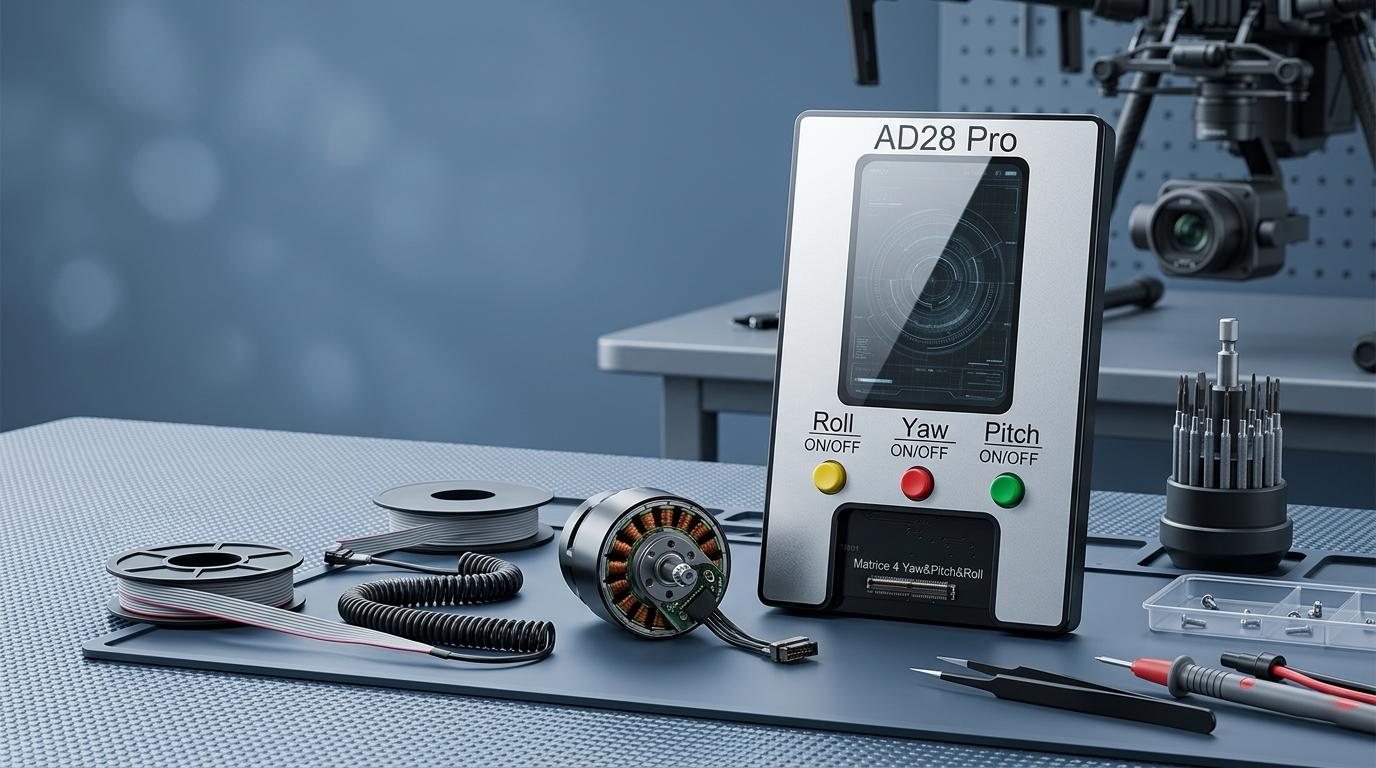

The DJIDrone-Parts Matrice 4 Series Gimbal Motor Test Board is designed specifically for Yaw, Pitch, and Roll motor diagnostics and is intended to provide quick fault detection with stable signal output.
Testing only one motor is not always enough.
When possible, compare the behavior of the suspected motor with a known-good motor of the same compatible type.
For example:
| Test Result | Possible Condition |
|---|---|
| Smooth and responsive | Motor may be functioning normally |
| No response | Possible motor, cable, connector, or power issue |
| Intermittent movement | Possible motor or connection problem |
| Abnormal vibration | Possible mechanical or motor issue |
| Extremely weak movement | Possible motor or control problem |
| Test board reports abnormal result | Motor requires further diagnosis |
These results should be treated as diagnostic indications rather than a final electronic specification.
A test board can help isolate a suspected motor fault, but it cannot always identify every possible failure in the complete gimbal system.
One of the biggest mistakes during gimbal repair is assuming that every gimbal error is caused by the motor.
The gimbal motor depends on its electrical connection and control circuitry.
If the motor appears abnormal, inspect the related cable and connectors before purchasing a replacement.
Look for:
Cracks
Creases
Pinched sections
Broken traces
Loose connectors
Corrosion
Damaged contacts
DJIDrone-Parts also supplies gimbal signal cables and related DJI repair components for different models. For example, the site currently lists a Matrice 4T gimbal signal cable as a replacement component.
This is why a professional troubleshooting workflow should usually consider three areas:
Motor + Cable + Mechanical Structure
rather than replacing components one by one without testing.
After testing, you can make a more informed decision.
If the motor responds normally and there are no obvious physical problems, investigate other possible causes such as:
Gimbal signal cable
Connector
Gimbal control electronics
Mechanical obstruction
Camera assembly
Calibration or initialization issues
If the motor consistently fails the test and the connection has been verified, replacement may be appropriate.
This can save time because you are replacing the component based on a diagnostic result instead of guessing.

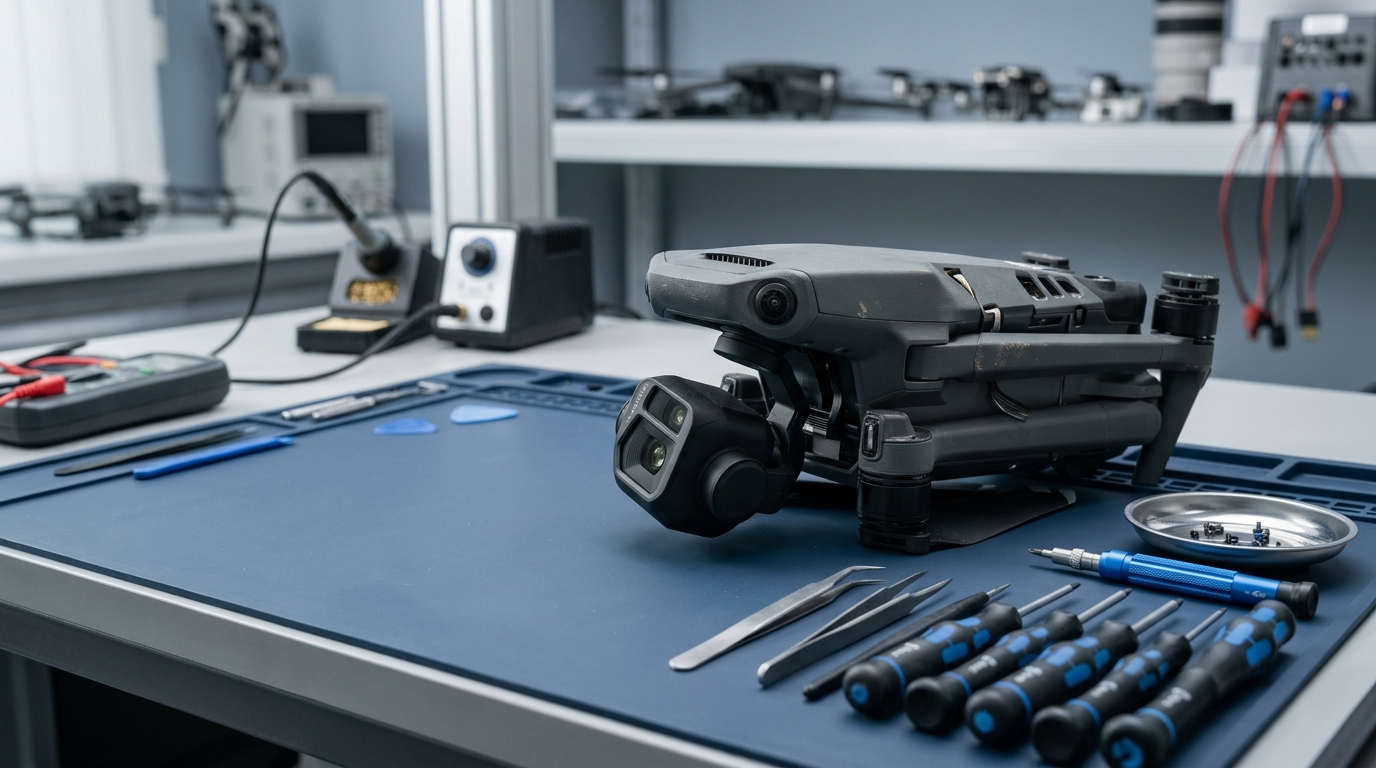

For occasional DIY repair, a technician may test one motor occasionally.
For professional repair shops, the value is much greater.
A repair shop may receive multiple drones with:
Crash damage
Gimbal overload warnings
Broken gimbal arms
Camera shaking
Initialization failures
Damaged motors
Damaged cables
Testing each component individually can make the diagnostic process more organized.
A dedicated test board can help technicians establish a repeatable workflow:
Receive damaged drone → Inspect → Remove suspect component → Test → Identify fault → Replace → Reassemble → Final test
This process can reduce unnecessary part replacements and improve repair efficiency.
Never assume that two DJI motors are interchangeable simply because they look similar.
Always verify the:
Drone model
Gimbal model
Motor type
Connector
Test board compatibility
For example, DJIDrone-Parts offers separate test-board products for different DJI product families. The Matrice 4 test board is designed specifically for the Matrice 4 series, while another product on the site is designed for Mini 3 / Mini 3 Pro / Mini 4 Pro gimbal motor testing.
A damaged cable can make a good motor appear defective.
Always inspect the connection before replacing the motor.
A motor may struggle because the gimbal structure is physically blocked.
DJI specifically recommends checking whether foreign objects or other physical restrictions are preventing the gimbal from moving normally.
A motor test board is a diagnostic tool, not a replacement for complete system inspection.
A failed motor test may indicate that the motor needs replacement, but technicians should still inspect the cable, connector and mechanical components.
| Troubleshooting Method | Efficiency | Diagnostic Value | Risk of Unnecessary Replacement |
|---|---|---|---|
| Replace motor directly | Low | Low | High |
| Visual inspection only | Medium | Limited | Medium |
| Multimeter inspection | Medium | Medium | Medium |
| Dedicated gimbal motor test board | High | High | Lower |
For technicians regularly working with DJI drone parts, a dedicated test board is especially useful when several motors need to be checked before repair.
One of the easiest ways to improve a drone repair workflow is to test replacement components before completing the final assembly.
For example, when repairing a damaged DJI Matrice 4 gimbal:
Inspect the damaged gimbal.
Remove the suspect motor.
Test the old motor.
Test the replacement motor.
Compare the results.
Install the confirmed working component.
Complete the gimbal assembly.
Perform the final aircraft-level test.
This approach helps reduce the chance of completing a full repair only to discover that the replacement component is not the actual cause of the problem.
No.
Different DJI drone generations and gimbal systems can use different motors, connectors and communication interfaces.
Always verify the compatibility of the test board with your specific drone and motor before use.
A test board is primarily used to evaluate the connected motor. A cable problem can affect the test result, so the cable and connectors should also be inspected.
A failed test does not automatically mean that the motor itself is defective.
Not immediately.
DJI recommends first checking for physical obstructions, gimbal accessories, protective components and other basic causes. If the warning continues, hardware diagnosis may be necessary.
A dedicated motor test can then help determine whether the motor is a likely source of the problem.
Basic plug-and-play test boards can be relatively easy to operate, but internal DJI gimbal components are delicate.
For damaged drone repairs, users should have basic knowledge of connectors, electronic components and safe disassembly practices.
Professional technicians should always follow the test-board manufacturer's connection instructions.
Check:
Your exact DJI drone model
Gimbal model
Motor type
Connector type
Yaw / Pitch / Roll compatibility
Test board version
Product description and compatibility information
When the model is uncertain, provide the seller with your drone model and a photo of the motor or gimbal connector before ordering.
A DJI gimbal motor test board is a practical tool for drone repair technicians who need to determine whether a gimbal motor is functioning correctly before replacing or reinstalling it.
Instead of replacing components based only on symptoms, technicians can use a dedicated test board to perform a more structured diagnosis of Yaw, Pitch, and Roll motors.
For DJI Matrice 4 Series repair work, the Gimbal Motor Test Board for DJI Matrice 4 Series from DJIDrone-Parts is designed specifically for gimbal motor diagnostics and supports a plug-and-play testing workflow.
When combined with proper inspection of gimbal cables, connectors and mechanical components, motor testing can make DJI drone repair more efficient and reduce unnecessary parts replacement.
